MySQL

Query Optimization

Advantages & Disadvantages of Indexing

Advantages of Indexing

Let's consider how an index works by beginning with a table that has no indexes. An unindexed table is simply an unordered collection of rows.

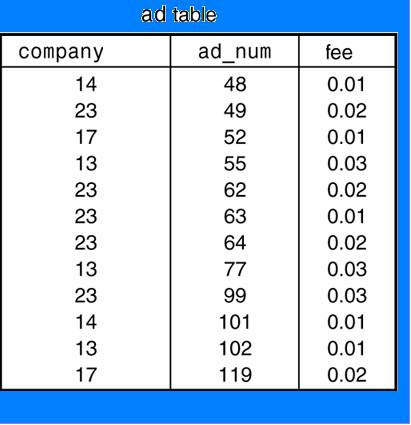

Unindexed ad table

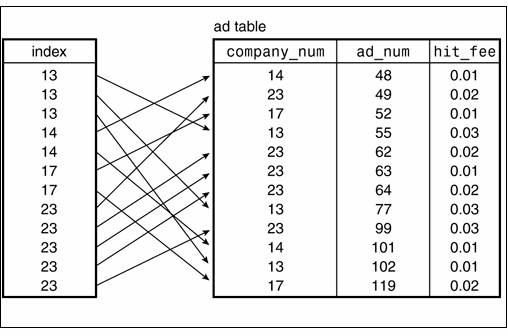

shows the same table but with the addition of an index on the company_num column in the ad table. The index contains an entry for each row in the ad table, but the index entries are sorted by company_num value. Now, instead of searching through the table row by row looking for items that match, we can use the index. Suppose we're looking for all rows for company 13.

We begin scanning the index and find three rows for that company. Then we reach the row for company 14, a value higher than the one we're looking for. Index values are sorted, so when we read the record containing 14, we know we won't find any more matches and can quit looking. Thus, one efficiency gained by using the index is that we can tell where the matching rows end and can skip the rest.

Another efficiency is that there are positioning algorithms for finding the first matching entry without doing a linear scan from the start of the index (for example, a binary search is much quicker than a scan).

That way, we can quickly position to the first matching value and save a lot of time in the search. Databases use various techniques for positioning to index values quickly, but it's not so important here what those techniques are. What's important is that they work and that indexing is a good thing.

Indexed Table

You may be asking why we don't just sort the data file and dispense with the index file. Wouldn't that produce the same type of improvement in search speed? Yes, it would--if the table had a single index. But you might want to add a second index, and you can't sort the data file two different ways at once. (For example, you might want one index on customer names and another on customer ID numbers or phone numbers.)

Using indexes as entities separate from the data file solves the problem and allows multiple indexes to be created. In addition, rows in the index are generally shorter than data rows. When you insert or delete new values, it's easier to move around shorter index values to maintain the sort order than to move around the longer data rows.

The example just described corresponds in general to the way MySQL indexes tables, although the particular details vary for different table types. For example, for a MyISAM or ISAM table, the table's data rows are kept in a data file, and index values are kept in an index file. You can have more than one index on a table; if you do, they're all stored in the same index file.

Each index in the index file consists of a sorted array of key records that are used for fast access into the data file. By contrast, the BDB and InnoDB table handlers do not separate data rows and index values in the same way, although both maintain indexes as sets of sorted values.

The BDB handler uses a single file per table to store both data and index values, and the InnoDB handler uses a single tablespace within which it manages data and index storage for all InnoDB tables.

The preceding discussion describes the benefit of an index in the context of single-table queries, where the use of an index speeds searches significantly by eliminating the need for full table scans.

However, indexes are even more valuable when you're running queries involving joins on multiple tables. In a single-table query, the number of values you need to examine per column is the number of rows in the table. In a multiple-table query, the number of possible combinations skyrockets because it's the product of the number of rows in the tables.

Suppose you have three unindexed tables, t1, t2, and t3, each containing a column c1, c2, and c3, respectively, and each consisting of 1000 rows that contain the numbers 1 through 1000. A query to find all combinations of table rows in which the values are equal looks like this:

SELECT t1.c1, t2.c2, t3.c3
FROM t1, t2, t3
WHERE t1.c1 = t2.c2 AND t1.c1 = t3.c3;

The result of this query should be 1000 rows, each containing three equal values. If we process the query in the absence of indexes, we have no idea which rows contain which values. Consequently, we must try all combinations to find the ones that match the WHERE clause.

The number of possible combinations is 1000x1000x1000 (1 billion!), which is a million times more than the number of matches. That's a lot of wasted effort, and this query is likely to be very slow, even for a database such as MySQL that is very fast. And that is with only 1000 rows per table.

What happens when you have tables with millions of rows? As tables grow, the time to process joins on those tables grows even more if no indexes are used, leading to very poor performance. If we index each table, we can speed things up considerably because indexing allows the query to be processed as follows:

. Select the first row from table t1 and see what value the row contains.

. Using the index on table t2, go directly to the row that matches the value from t1. Similarly, using the index on table t3, go directly to the row that matches the value from t1.

. Proceed to the next row of table t1 and repeat the preceding procedure until all rows in t1 have been examined.

In this case, we're still performing a full scan of table t1, but we're able to do indexed lookups on t2 and t3 to pull out rows from those tables directly. The query runs about a million times faster this way-literally.

(This example is contrived for the purpose of making a point, of course. Nevertheless, the problems it illustrates are real, and adding indexes to tables that have none often results in dramatic performance gains.)

MySQL uses indexes as just described to speed up searches for rows matching terms of a WHERE clause or rows that match rows in other tables when performing joins. It also uses indexes to improve the performance of other types of operations:

. For queries that use the MIN() or MAX() functions, the smallest or largest value in a column can be found quickly without examining every row if the column is indexed.

. MySQL can often use indexes to perform sorting and grouping operations quickly for ORDER BY and GROUP BY clauses.

. Sometimes MySQL can use an index to avoid reading data rows entirely. Suppose you're selecting values from an indexed numeric column in a MyISAM table and you're not selecting other columns from the table.

Disadvantages of Indexing

In general, if MySQL can figure out how to use an index to process a query more quickly, it will. This means that, for the most part, if you don't index your tables, you're hurting yourself. You can see that I'm painting a rosy picture of the benefits of indexing. Are there disadvantages? Yes, there are. In practice, these drawbacks tend to be outweighed by the advantages, but you should know what they are.

First, an index takes up disk space, and multiple indexes take up correspondingly more space. This may cause you to reach a table size limit more quickly than if there are no indexes:

. For ISAM and MyISAM tables, indexing a table heavily may cause the index file to reach its maximum size more quickly than the data file.

. For BDB tables, which store data and index values together in the same file, adding indexes will certainly cause the table to reach the maximum file size more quickly.

. InnoDB tables all share space within the InnoDB tablespace. Adding indexes depletes storage within the tablespace more quickly. However, as long as you have additional disk space, you can expand the tablespace by adding new components to it. (Unlike files used for ISAM, MyISAM, and BDB tables, the InnoDB tablespace is not bound by your operating system's file size limit, because it can comprise multiple files.)

Second, indexes speed up retrievals but slow down inserts and deletes as well as updates of values in indexed columns. That is, indexes slow down most operations involving writing. This occurs because writing a record requires writing not only the data row, it requires changes to any indexes as well. The more indexes a table has, the more changes need to be made, and the greater the average performance degradation.
